50mm Concrete conveying hose

Details

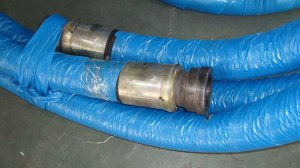

Concrete pump hose –delivery hose and end hose
1. Our hose are able to use 20,000 cubic meter, the inside of hose is high abrasion resistant.
2. Integrated hose end and inner wall harden, prolong work life.
3. Hose end can be galvanized.

Technical Data:



ID

(mm)

WT

(mm)

OD

(mm)

W.P.

(bar)

B.P.

(bar)

Bend Radius

(mm)

Weight

( Kg/m)

51.0

9±0.75

68±1.5

85

240

200

2.8

64.0

10±0.75

85±1.5

85

200

250

4.0

76.2

12.9±1

102±1.5

85

200

270

5.8

89.0

13.5±1

116±1.5

85

200

290

7.5

101.6

14.2±

130±1.75

85

200

300

8.13

115.0

14±1

143±2

85

200

320

9.21

127.0

16±1

158±2

85

200

360

11.33

150.0

18±1

186±2

85

200

570

14.85

Other sizes and types upon request



Name

Concrete rubber hose –delivery hose and end hose

Size

2''/2.5''/3''/3.5''/4''/4.5''/5''/6''or according to customer's requirement.

Length

1.0m—25m

Reinforcement

Steel wire, tire cord or fabric

Work Pressure

30 bar to 120 bar

Burst Pressure

120 bar to 380 bar

Service Life

20,000 cubic meter

Hose End

Galvanized, inner wall harden

Application

Used in Conveying concrete, slurry, sand, dust, stone, etc
